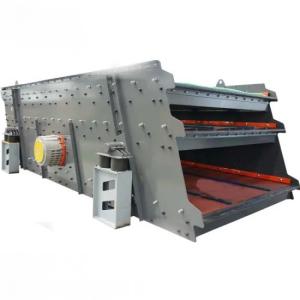

Grizzly Vibrating Screen In Mineral Processing

Brand Name : ZR

Model Number : YK

Place of Origin : Shanghai, China

MOQ : 1 Piece

Price : Price Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1000PCS/Year

Delivery Time : 20-30 days

Packaging Details : Nude Cargo/Pallet/Wooden Case

Type : Circular

Function : High Frequency Vibrating Screen

Transmission Structure : Electromagnetic Shaker

Usage : Mine Shaker, Experiments Shaker, Lightweight Fine Shaker, Ore,Mining,Metallurgy,Chemical,Construction

Object : Stone/Rock/Ore/Mineral/Waste/Coal

Other Material : Pebble, Basalt, Limestone, Granite, Andsite, etc.

Works : Rotary Vane Shaker

Shaft Number : 3

Running Track : Circular Vibrating Screen

Supporting Device : Coil Spring

Max Feed Size : 400mm

Processing Capacity : 160-1120T/H

Contact Now

3YK2460 Mining Vibrating Screen

Technical Parameters

Model: 3YK2460

Max Feed Size: 400mm

Processing Capacity: 160-1120t/h

Mesh Size: 5-150mm

Motor Power: 37kw

Product technical parameters

Model Max feed size
(mm)		 Processing capacity
(t/h)		 Mesh size
(mm)		 Dimensions
L*W*H(mm)		 Theoretical weight
(Ton)		 Motor power
(kw)
2YK1860 400 50~350 5~80 6264*2975*3479 5.6 18.5
3YK1860 400 50~350 5~80 6264*2975*3957 6.87 22
4YK1860 400 50~350 5~80 6264*2975*4490 8.3 22
2YK2160 400 160~640 5~100 6298*3323*3598 7.5 22
3YK2160 400 160~640 5~100 6298*3323*4011 8.2 30
4YK2160 400 160~640 5~100 6298*3388*4490 9.1 30
2YK2460 400 160~1120 5~150 6374*3702*3532 10.2 30
3YK2460 400 160~1120 5~150 6374*3702*4011 11.8 37
4YK2460 400 160~1120 5~150 6374*3710*4448 13 37
3YK3072 400 300~1280 5~150 7651*4650*4698 15.9 22*2
4YK3072 400 300~1280 5~150 7651*4650*5285 19.9 22*2
3YK3682 300 400-1380 5-150 9184*4473*2327 30 45*2

Profile
The circular vibratory screen does circular motion, which is a new type of vibratory screen with multiple layers and high efficiency. The circular vibratory screen adopts a cylinder type eccentric shaft vibration exciter and a partial block to adjust the amplitude, the material screening line is long, and got multiply screening specifications.

Working Principle & Application

Vibrating screens is compiled of mainframe, eccentric bock, screen web, rub spring, electric motor, coupler and some more. Vibrating Screen moves round. It has multi-layers and is of high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down along the long line. We have always kept in our minds the choices, preferences and the tastes of our all clients. We will offer you suitable type according to your requirements.

Materials:Granite/Cobble Stone/Limestone/Qaurtz Stone etc
Application:Chemistry/Water Conservancy/Railway,Highway/Construction/Metallurgy/Mine/Building Materials/Coal etc

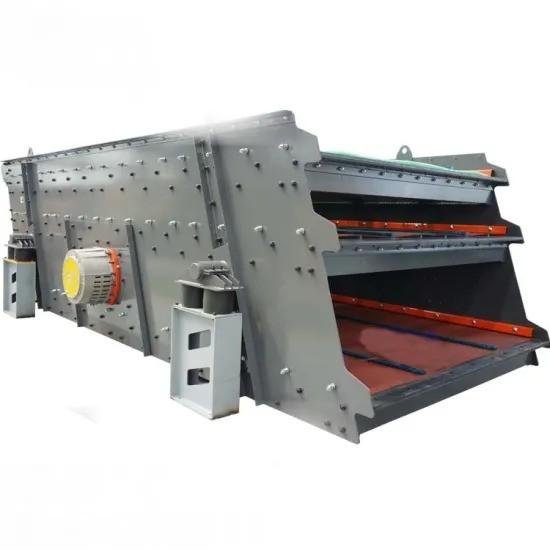

Grizzly Vibrating Screen In Mineral Processing

Grizzly Vibrating Screen In Mineral Processing
